OCR HUD Reader

A periodic Tesseract-based OCR engine that reads named rectangular regions of your screen and exposes the recognized text. Use it to track health, ammo, score, or any other on-screen number — and feed the values into triggers or AutoPlay.

What it does

On each tick (default every 500 ms), the OCR engine:

1. Captures each enabled region as a small Bitmap
2. Optionally binarizes it (threshold + invert)
3. Runs Tesseract 5.2 with English-language data
4. Post-processes per region kind (Number = digits only, Health = number + slash, Text = free-form)
5. Stores the result in OcrService.Latest

Other PowerAim subsystems (AutoPlay, triggers) can read those values; you can also see them live in the dialog.

How to enable

1. Settings → HUD OCR → Enable HUD OCR

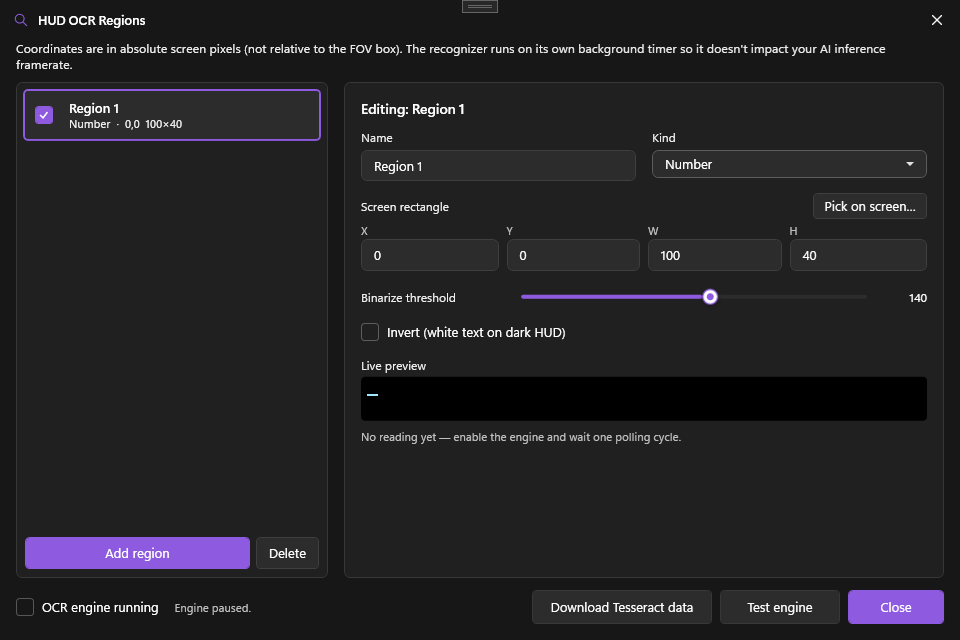

2. Click Configure OCR Regions
3. In the dialog, click + Add Region
4. Draw the region directly on the captured frame (click-and-drag)
5. Pick the Kind: Text / Number / Health
6. Optionally enable Invert and adjust Threshold for clearer OCR
7. Hit Test to OCR the region once and see the result

Tessdata download

Tesseract needs an eng.traineddata language model. On first launch the dialog shows a Download Tessdata button that grabs it into %LocalAppData%\PowerAim\tessdata\. If you’d rather supply your own, point the Tessdata Path field on the Settings card to your folder.

Configuration options

Settings card

Setting	What it does	Default
Enable HUD OCR	Master toggle	Off
OCR Interval	Polling interval in ms (100–5000)	500
Tessdata Path	Override the data folder	empty (= default)

Per-region

Setting	What it does
Name	Free text — used by consumers to look up the value
X / Y / Width / Height	Pixel rectangle on the captured frame
Enabled	Per-region toggle (lets you keep regions defined but inactive)
Kind	Text / Number / Health — drives post-processing
Invert	Invert the binarized image (for white-on-dark HUDs)
Threshold	Binarization cutoff (0–255). 140 default.

Tips

• Keep regions tight. 100×40 around the ammo number is way faster than scanning a 400×400 corner.
• Binarize when the font is anti-aliased. Tesseract works best on clean black-on-white. Try the Invert toggle if the font is light on dark.
• 500 ms is fine for health. Don’t drop the interval below 200 ms unless you really need it — OCR is CPU-bound and adds latency.
• Health = “75/100”. The Health kind strips spaces but preserves the slash so consumers can split it.

Aim-disengage rules

OCR can also pause aim assist while a HUD region matches — for example, stop aiming while you’re scoped, holding a knife, or in a menu. This avoids fighting the player during moments where assist is unwanted.

Open it from the Configure aim-disengage… button on the HUD OCR card. Each rule has:

Field	What it does
Region	Which OCR region to watch
Comparison + value	Same operator set as trigger OCR conditions — e.g. contains scoped, or HP less than 20
Match Process	Optional process pattern to scope the rule to one game
Enabled	Per-rule toggle

While any enabled rule matches, Aim Assist is held off until the rule stops matching.

Like trigger conditions, aim-disengage rules are only evaluated while the OCR engine is on. If OCR is off, no rule pauses aim.

Use cases

• Auto-reload when ammo is low. A trigger reads OCR ammo, fires R when ammo < 5.
• Gate triggers on the HUD. Use OCR trigger conditions so a trigger only fires while ammo or health is in range.
• Pause aim while scoped or knifing. An aim-disengage rule on a “weapon” region keeps assist from interfering during melee or aim-down-sights.
• AutoPlay aggression. AutoPlay knows when health is low and biases toward retreat actions.
• Stream overlay. Pipe OCR values out to your stream without OBS plugins.

Troubleshooting

• OCR returns garbage — sharper image needed: tighten the region, bump threshold, try Invert.
• No tessdata found — verify the Tessdata Path on the Settings card points at a folder containing eng.traineddata.
• OCR seems off — confirm the region is correct on the live preview in the dialog. The capture source must include your HUD.
• High CPU — raise OCR Interval or disable the more expensive regions.
• Tessdata download failed — drop eng.traineddata manually into %LocalAppData%\PowerAim\tessdata\ from the official Tesseract releases.
